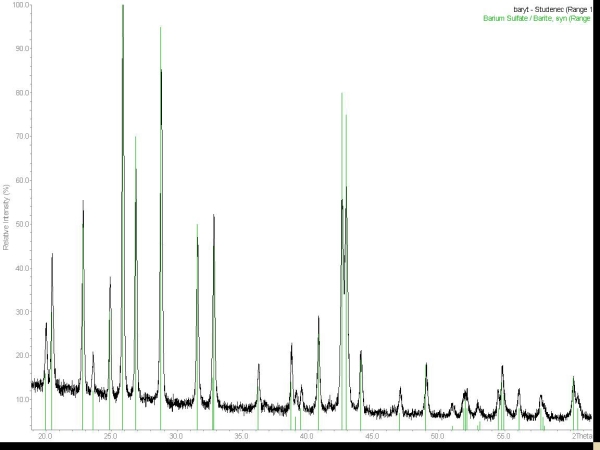

Obrázek 76-8. Práškový RTG difrakční záznam barytu (lokalita Studenec u Jilemnice) pro Co záření. Změřeno na difraktometru Stadi P, STOE.
Polohy a intenzity difrakčních maxim od strukturních rovin barytu, podle standardu databáze JCPDS pro Co záření.
| D | 2Theta | I(rel) | H K L |
| 5,580 | 18,45 | 2 | 1 1 0 |
| 4,440 | 23,24 | 16 | 0 2 0 |
| 4,339 | 23,79 | 30 | 1 0 1 |
| 3,899 | 26,53 | 50 | 1 1 1 |
| 3,773 | 27,43 | 12 | 1 2 0 |
| 3,577 | 28,96 | 30 | 2 0 0 |
| 3,445 | 30,10 | 100 | 0 2 1 |
| 3,319 | 31,27 | 70 | 2 1 0 |
| 3,103 | 33,51 | 95 | 1 2 1 |
| 2,836 | 36,77 | 50 | 2 1 1 |
| 2,735 | 38,18 | 15 | 1 3 0 |
| 2,729 | 38,27 | 45 | 0 0 2 |
| 2,482 | 42,25 | 13 | 2 2 1 |
| 2,447 | 42,88 | 2 | 1 3 1 |
| 2,325 | 45,25 | 14 | 0 2 2 |
| 2,305 | 45,67 | 6 | 3 1 0 |
| 2,282 | 46,15 | 8 | 2 3 0 |
| 2,211 | 47,73 | 25 | 1 2 2 |
| 2,169 | 48,71 | 3 | 2 0 2 |
| 2,121 | 49,89 | 80 | 1 4 0 |
| 2,106 | 50,27 | 75 | 2 1 2 |
| 2,057 | 51,55 | 19 | 0 4 1 |
| 1,949 | 54,65 | 1 | 2 2 2 |
| 1,932 | 55,17 | 7 | 1 3 2 |
| 1,858 | 57,57 | 18 | 3 3 0 |
| 1,789 | 60,00 | 4 | 4 0 0 |
| 1,762 | 61,03 | 8 | 1 0 3 |
| 1,758 | 61,15 | 10 | 3 3 1 |
| 1,754 | 61,32 | 8 | 4 1 0 |
| 1,728 | 62,33 | 4 | 1 1 3 |
| 1,724 | 62,51 | 5 | 1 5 0 |
| 1,682 | 64,24 | 8 | 0 2 3 |
| 1,674 | 64,59 | 14 | 1 4 2 |
| 1,670 | 64,78 | 11 | 4 1 1 |
| 1,660 | 65,23 | 2 | 4 2 0 |
| 1,644 | 65,92 | 3 | 1 5 1 |
| 1,638 | 66,21 | 8 | 1 2 3 |
| 1,626 | 66,76 | 1 | 3 4 0 |
| 1,594 | 68,25 | 8 | 2 1 3 |
| 1,591 | 68,44 | 6 | 2 5 0 |
| 1,588 | 68,59 | 4 | 4 2 1 |
